Not all projects can be cut on standard size trimmers. For these applications, Dahle offers large format line of Guillotines. These industrial sized cutters are designed to cut large amounts of paper with your safety in mind. Each cutter has built in features that will make your cutting task a safe and pleasurable experience. Dahle Large Format Guillotines are manufactured in Germany and can be found in art departments, custom frame shops, and print & copy centers.

Dahle’s Professional Series Large Format Guillotines are table mounted and made of a durable laminated wood base. These cutters feature a metal safety guard, manual clamp, and a lockable T-square that can be mounted on either end of the cutting surface. This series is available in 30", 36" and 42" cutting lengths and make easy cutting of press sheets, mat board, and up to 40 sheets of paper at a time.

Dahle’s Premium Series Large Format Guillotine offers such safety features as a lockable blade and acrylic safety shield to eliminate the chance of unauthorized use and injury. These cutters provide cutting lengths of 32" and 43" and includes an integrated metal stand. A self sharpening ground steel blade makes easy work of cutting of press sheets, mat board, and up to 40 sheets of paper at a time. The adjustable hand crank and lockable T-square ensure you receive the precision you need each and every time.

Available models are: Dahle 580, and 585 (797, Laser Guide Optional).

Back to main Dahle Paper Trimmers and Cutters Page...

!

Dahle 124 - Professional 24" Large Format Guillotine Paper Cutter

Dahle Paper Trimmers
076769124004
Larger Image

Dahle 124 Professional Large Format Guillotine Paper Cutter / Trimmers are designed for ease of use and long life.

This model combines the same performance quality as other models, except it has a wood base format with non-skid rubber feet, and a grid pattern / measure guide imprinted directly on the base surface.

Dahle’s 124 guillotine cutter is an excellent solution for mat board, paper, cardboard, card stock, laminating film, art paper or other flexible thin gauge industrial print matter.

The design of this model is intended for larger material and allows for continuous cut with precisely squared angles. The Solingen steel blade is known as the industry standard metal for performance office equipment such as this - and it stays sharp under normal use. This metal out-performs all other store bought trimmer blades which can dull quickly due to lower grade thinner steel design, which is designed to wear.

Specifications
Model #: 124
Sheet capacity*: 10
Cut length: 24"
Dimensions: 27 1/2" x 24 3/4"



Dahle 569 - 27 1/2" Large Format Guillotine Trimmer

Dahle Paper Trimmers
076769569003
Larger Image

The Dahle 569 is an ultra-wide, large format guillotine trimmer with added safety and measuring features. Designed for use on a table top or work bench, the large 27 1/2" cutting size accommodates small and large jobs alike.

Designed for professional and commercial applications such as drafting and architecture studios, print and copy centers, and graphics design houses - this model withstands heavy duty use from day to day.

These premium Guillotine trimmers feature a revolutionary safety guard that rotates around the cutting blade to ensure complete protection while cutting.

This guard protects your fingers from the ground blade made of Solingen steel. The blade sharpens itself with each and every cut so you're guaranteed to maintain a perfectly honed cutting edge.

Specifications
Model #: 569
Sheet capacity*: 35
Cut length: 27 1/2"
Accessories included: Quick adjust back-stop paper guide
Swivel / rotating blade guard
Lever action, locking paper clamp
Pull-out waste tray /
with reverse measure guide
Dimensions: 29 1/2" x 21 1/2"



Dahle 136 Professional - Large Format Guillotine Paper Trimmer

Dahle Paper Trimmers
Larger Image

***Discontinued - Limited Stock Available - call before ordering.***

Dahle 136 Professional Large Format Guillotine Cutter is heavy-duty unit is designed for cutting paper, poster board, mat board, foam mounting board, and other mediums.

With features like a lockable T-bar 90 degree back-stop, metal safety guard and a large work base, this unit is designed for commercial and industrial applications.

All the units in this line have a 1" grid pattern imprinted on the work space surface for easy measuring of cut lengths. The self adjusting clamp holds material firmly in place, and releases for a quick work-flow. Designed for larger applications, this unit can be used on a table top or work bench for day to day use.

Specifications
Model #: 136
Sheet capacity*: 40
Cut length: 36"
Accessories included: Quick adjust back-stop paper guide
Metal safety fan guard
Dimensions: 40 1/2" x 34"

Dahle 580 Premium - Large Format Guillotine Paper Trimmer

Dahle Paper Trimmers
076769580008
Larger Image

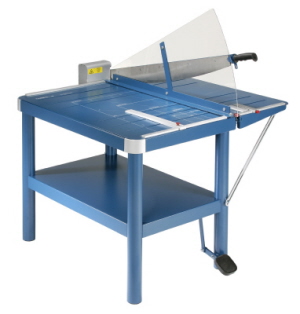

Dahle 580 Premium Large Format ;Guillotine Paper Trimmers are industrial cutters. Designed for heavy work loads, and constructed to with-stand commercial applications and environments.

When precision is a must, you can depend on these German engineered models to deliver. The blades are manufactured using Solingen steel, perfectly honed to provide a clean trim every time even after years of use.

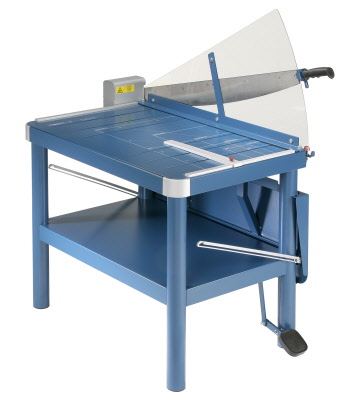

This commercial grade cutter is designed for larger applications with precision and accuracy in mind. The table format, provide an extending fold up cut off tray extension which can be folded down when not used.

The Acrylic safety guard prevents injury while cutting. A manual foot clamp provides even pressure to hold material in place. An optional laser guide can be installed for a precise indication of the trim line on material.

Specifications
Model #: 580
Sheet capacity*: 30
Cut length: 32"
Accessories included: Quick adjust back-stop paper guide
Acrylic safety fan guard
Extending cut-off table
Optional accessories: Laser cut line guide
Dimensions: 36" x 33 1/2"



Dahle 585 Premium - Large Format Guillotine Paper Trimmer

Dahle Paper Trimmers
076769585003
Larger Image

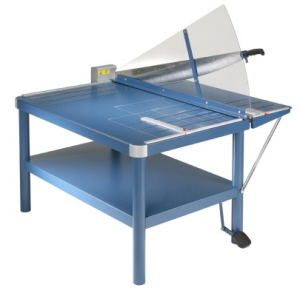

Dahle 585 Premium Large Format Guillotine is one of the largest area trimmers available on the market in its class. With an ultra-sized 43" cutting area, it can accommodate most jobs in the print trade and can be used for other commercial / industrial applications.

Safety, comfort and ease of use have all been taken into account in the design of this model. The table height allows maximum pressure when working, and a manual foot pedal provides even pressure across the clamp, and allows quick release to maximize work flow.

One of the neat features of this unit is the optional laser guide which is used to indicate the exact trim line on material. This maximized accuracy and eliminates waste due to improper measuring by the user. The adjustable screw down back-stop guide can be used on either side of the cutting table or removed completely for larger jobs.

The lower table shelf can be used as storage for none task related items, or for material being used on the current job.

Specifications
Model #: 585
Sheet capacity*: 30
Cut length: 43"
Accessories included: Quick adjust back-stop paper guide
Acrylic safety fan guard
Extending cut-off table
Optional accessories: Laser cut line guide
Dimensions: 53" x 41"
